Our Original Brushless Motor Technology
► No wearing parts (carbon brushes, commutator, field coil)
► Our original compact controller
Long Lifetime, Maintenance-Free
The brushless motor offers a significantly extended product life cycle by eliminating trouble including armature burnout, layer short or commutator wear even in severe work environments. Besides, no carbon brush replacement is required.
Compact, Lightweight
Compatible with Engine Generators
Equipped with Our original, compact high efficiency inverter circuit, the demolition hammer works with an engine generator that doesn’t have an on-board inverter.
Stable Performance during Voltage Drops
The brushless motor runs cooler, and its performance isn’t affected as much by voltage drop from long extension cords onsite. This vastly improves electrical efficiency.
Our original, spring-type dynamic vibration absorber (on the H45MEY only)
Our original, spring-type dynamic vibration absorber with a weight and two springs move in the opposite direction to the vibration direction of the main body. This results in reduced vibration and improved operating efficiency
Low vibration handle (on both the H45ME and H45MEY)
Our original vibration-absorbing mechanism with the Transatory unit (rubber dampers) and the hinge unit provides high vibration absorbing effect. This will help absorb and reduce vibrations to the user, making it more comfortable for prolonged periods of time.
The UVP system includes the LVH mechanism.
High durability
The internal double-insulation construction with a very sturdy aluminium die-cast body and a plastic internal stator holder
makes the housing more rigid, significantly enhancing durability of the motor unit.
Push-button, constant speed control with variable speed
Image of the push-button, constant speed control with variable speed
1. Push-button, constant speed control with variable speed
The built-in electronic control circuit adjusts the impact rate according to applications, and the four-step impact rates can be selected by the impact rate selector switch.
2. Power Lamp
lights up when the plug is inserted into an outlet.
One push action for quick bit mounting
A bit can be mounted by simply inserting it into the tool holder
Tool bit angle adjustment
The tool bit angle can be easily adjusted to 12 different angles every 30 degrees by turning the grip.
Large trigger switch
Large easy-to-grip trigger switch for more control.
Specifications

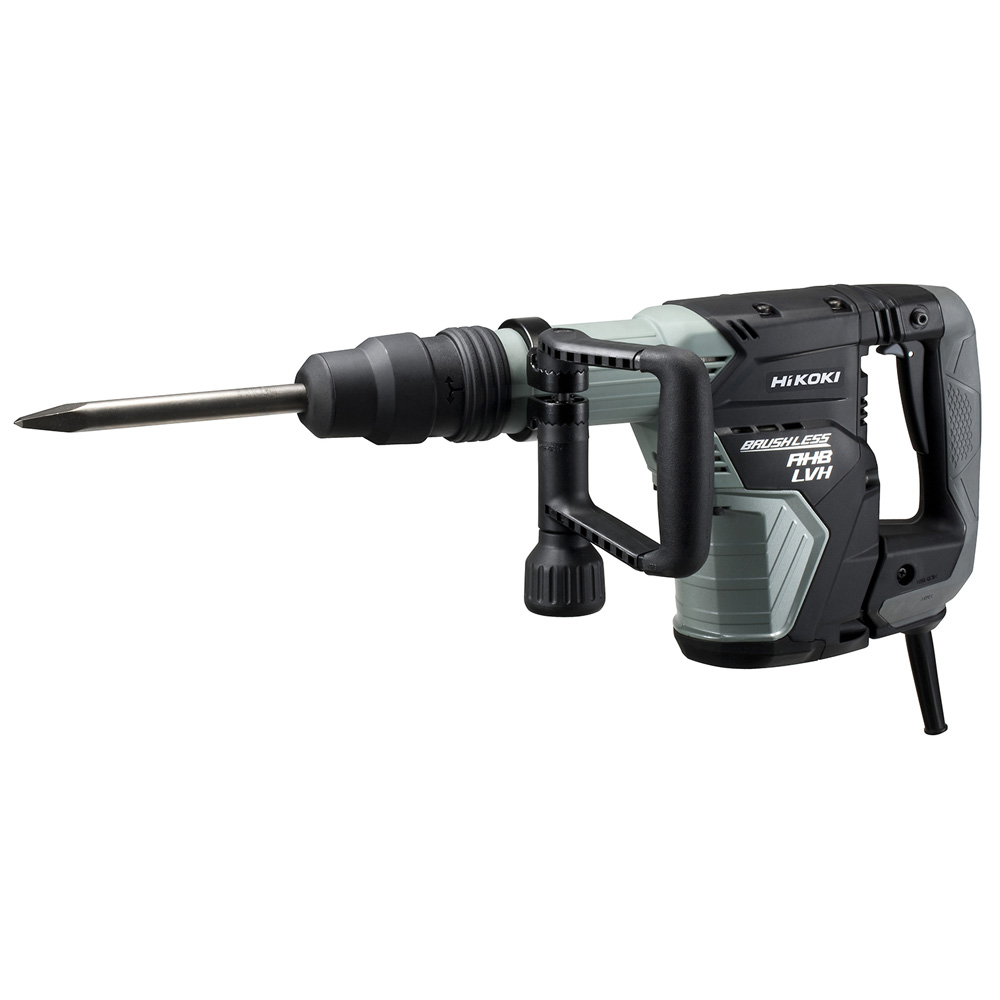

| MODEL | H45ME | ||
|---|---|---|---|
| POWER INPUT | 1,150W | ||
| FULL LOAD IMPACT RATE | 1,430 – 2,850/min | ||
| BIT SHANK | SDS max | ||
| OVERALL LENGTH | 480mm(18-29/32”) | ||
| WEIGHT*1 | |||
| VIBRATION TOTAL VALUES (TRIAX VECTOR SUM)*2 |
CHISELING | Vibration emission value ah, CHeq = 11.0m/s2 | |
| Uncertainty K = 1.5m/s2 | |||
| STANDARD ACCESSORIES | Bull Point, Side Handle, Carrying Case | ||
